8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch

Product Categories

HiOSO Technology Co., Ltd.

Contact Now

Name: 8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : FOWAY1309FCM

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000psc/month

Delivery Time : 2-10 working days

Packaging Details : 28*193*119 mm (H*W*D)

Type : Fiber Switch

Ports : 8 10/100M sfp ports+ 1 1000M Combo Uplink port

Transmission Rate : 1000Mbps

Power Supply : AC100-240v 50/60HZ

Working Temperature : -10-60℃

Dimension : 28*193*119 mm (H*W*D)

Contact Now

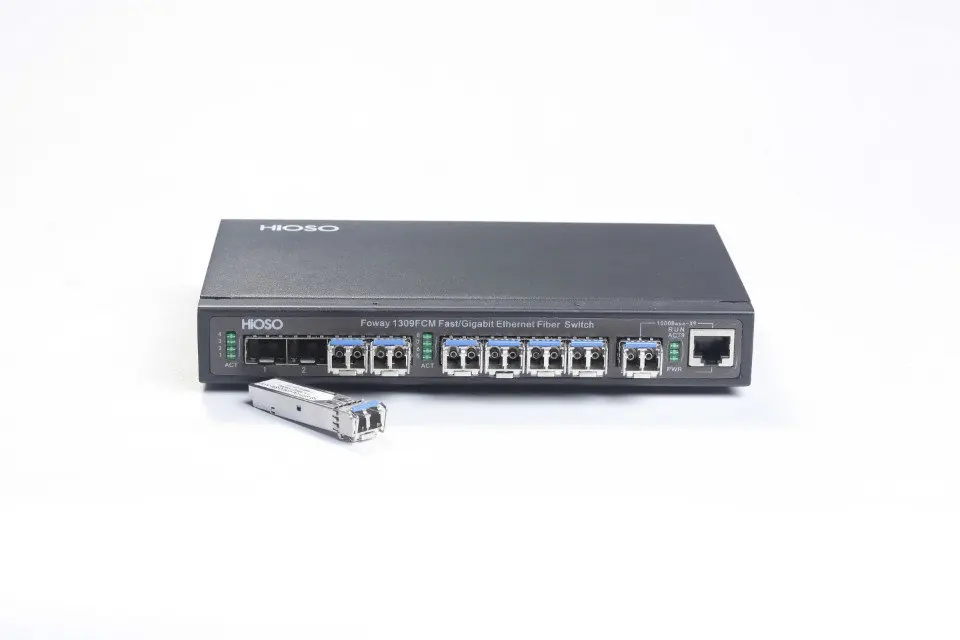

FOWAY1309FCM 8 100M SFP Fiber Ports +1 gigabit combo uplink port managed fiber switch

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1q Qos,IEEE802.3ad Trunk,IEEE802.3X Flow Control
Wavelength	850nm/1310nm/1490nm/1550nm
Distance	100M SFP multi-mode: 2Km Single-mode: 25/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	8 100M SFP fiber ports: 100Mbps 1 Gigabit Combo port:1 Gbps, 100M/1000M SFP&10/100/1000M RJ45
MAC	8K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/AC220V
Power consumption	7.9W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)

Details Images

Product Usage
